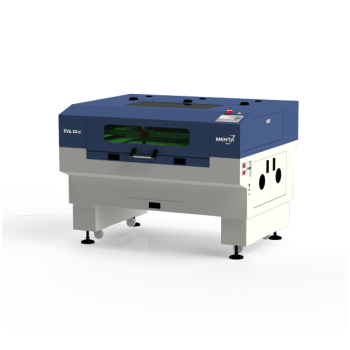

EVA 32
Pass Through Design for long length of work piece in Y-axis direction. |
Machine is Provided with Foot-mounting legs so that there is no vibration in machine can be adjusted on zero level. |
As it is made in india No waiting period for spare parts & quick service support. |
Machine is provided with heavy duty compressor which has Air-assist combining adjustable focus systems in coaxial jet air to prevent cutting edge from burning down. |
Laser cut software with window based software enhance cutting speed & angle / curve performance. |
Machine is Provided with Foot-mounting legs so that there is no vibration in machine can be adjusted on zero level. |
Laser seals the edges of fabric while cutting. |
Maximum cutting thickness of arcylic – 25mm. |
Machine is Provided with Foot-mounting legs so that there is no vibration in machine can be adjusted on zero level. |
High quality of chiller unit for better performance and long life of laser tube. |
Model | EVA 21-II | EVA 32-II | EVA 43-II | EVA 44-II | EVA 48-II | EVA 510-II |
X,Y Cutting Area | 2’ ft. x 1.5’ ft. | 3’ ft. x 2’ ft. | 4’ ft. x 3’ ft. | 4’ ft. x 4’ ft. | 4’ ft. x 8’ ft. | 5’ ft. x 10’ ft. |
Laser Power | 60W | 80W / 100W | 80W / 100W / 130W | 100W / 130W / 150W | 80W / 100W / 130W / 150W | 100W / 130W / 150W |
Laser Source | Sealed Glass Co2 Laser Tube | |||||
Travelling Speed | 600 mm/s | |||||
Reposition Accuracy | 0.02 mm | |||||
Minimum Letter Size | 1.0 mm (English Font) | |||||
X Y Movement System | Belt Transmission | |||||
Z – Axis Movement | Automatic Up to 180 mm (optional) | |||||
Power Adjustment | 1 to 100 % | |||||
Driving System | Stepper Motor/servo motor | |||||
Operating System | Win 7/8/10, 32/64 bit | |||||
Computer Interface | Udisk, USB, Ethernet | |||||
Supported Format | PLT, DXF, BMP, JPG, AI, DWG, BMP, GIF, HPGL | |||||
Compatible Software | CorelDRAW, AUTOCAD, Photoshop, Tajima | |||||
Working Voltage | Single Phase 220-230V / 50Hz-60Hz, 20A Max. | |||||
Operating Environment | 45°C, Humidity 5% – 80% | |||||
Memory Buffer | 128 MB | |||||
Fume Extraction System | External exhaust system with minimum flow rate 1200m3/h (CFM 706 ft3/h). Connection output 4″ Diameter | |||||
Overall Dimension (L x W x H) | 1010 x 490 x 1030 mm | 1170 x 1530 x 1000 mm | 1450 x 1780 x 1070 mm | 1770 x 1830 x 1070 mm | 3440 x 2172 x 1030 mm | 4050 x 2500 x 1030 mm |
Weight | 190 Kg | 243 Kg | 332 Kg | 380 Kg | 860 Kg | 680 Kg |
Power Consumption | 1.2 KW | 2 KW | 2 KW | 3.5 KW | 3.5 KW | 4.3 KW |
Specifications are liable to change without prior notice. All trademarks mentioned are property of their respective owners. |
