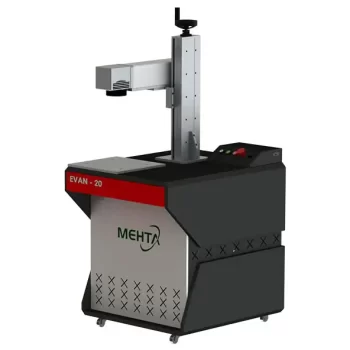

EVAN SERIES

Marking on all metal products

Marking on some non metals like PVC, Paper ABS, etc…

Bar code / Data Matrix Marking

Serial Number Marking

Bitmap (Graphics) marking

High quality gray scale marking.

Jewellery Metal Cutting

Long using time : the average using time more than 100000 hours.

Good stability and free maintenance: No need to do maintenance for laser device.

Stable performance, small size, low power consumption.

The operating system is flexible and convenient.

Stable performance, small size, low power consumption.

High speed marking (MHz repetition rate).

First and last pulse equally useable.

High repeatability/stability design.

Status monitoring and safe shut down.

Excellent beam quality, high stability output easy to debug the marking effect.

High electro-optical conversion efficiency, long useful period.

Model	Evan-20	Evan-30	Evan-50	Evan-100
Output Power	20 W	30 W	50 W	100 W
Wavelength	1064 nm
Power Adjustment	0 to 100 %
Cooling	Air Cooled
Min. Line Width	Min. 0.03 mm (Depend on Material)
Max. Speed	Max. 10000 mm/s (Max. Linear Speed)
Marking Depth	0.01~0.3mm (Depends on Material)
Min Character Height	0.5 mm
Marking Range	145 mm X 145 mm (Standard) Optional : 70 x 70 mm, 175 X 175 mm, 200 x 200 mm, 270 x 270 mm, 300 X 300 mm
Supporting Format	Support PLT, DXF, BMP File etc., Using SHX TTF Character Storage Directly
Single Pulse Energy (mj)	1.0@20KHz	1.0@30KHz	1.0@50KHz	1.0@100KHz
Repetition Frequency Range	20-60 KHz	30-60 KHz	50-100 KHz	20-200 KHz
Output Power Stability	<3%
Beam Quality(M²)	<1.5		<1.8
Pulse Width(ns)	90-130 KHz		90-150 KHz	50-130 KHz
Max Power Consumption	200 Watt	250 Watt	350 Watt	500 Watt
Specifications are liable to change without prior notice.Computer system will not be provided with the machine.Total machine power consumption is 1KW.
