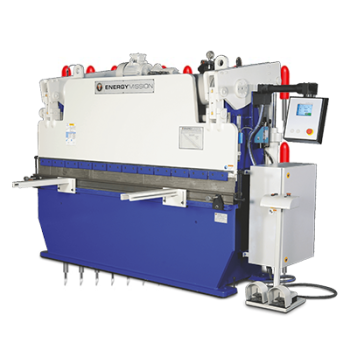

NC PRESS BREAKE

NC PRESS BREAKE

NC PRESS BREAKE

Range : 30 MT to 800 MT
Length : 1250 mm to 8000 mm

Salient Features

  • Quick changeover for sample production & mass production.
  • 7” Touch screen Press brake controller from Cybelec Switzerland
  • User friendly Colour Touch screen for easy programming.
  • Two axis automatic control – bending degree (Y Axis) & back gauge (X-Axis) program.
  • Multiple bends with different back gauge positions can be programmed.
  • 200 programs & 24 bends with individual back gauge positions in one program.
  • Different 50 punches and Dies can be stored.
  • The back gauge repeated position accuracy within ±0.1mm.
  • Bend angle & depth mode programme can be possible.
  • Programmable back gauge retraction.
  • Programmable angle correction & back gauge correction.
  • Programmable open height on each bend.
  • Job counter on screen.
  • Suitable for upgradation with special optional features.
  • High-speed back gauge movement by AC servo drive.
  • Smooth and Sturdy back gauge assembly equipped with hardened ball screw, LM Guides & timer belt.
